XL, XXL Bio Ethanol Burner Inserts BX Range:
Install Extraordinary Smart Fireplaces



Exclusive ventless bio ethanol inserts, large sizes



At the heart of the inspiration of designers, architects, interior decorators and creators, there is the control of style and a “difference”. AFIRE, with its extra-large bioethanol burner inserts BX range, offers the possibility of creating exceptional hearths with total control of the art of fire. The spirit of the AFIRE inserts is an exclusive ecological and smart XL or XXL bio ethanol burner insert with embedded natural flames, with complete safety in the fire design space.

An exclusive top of the line smart fireplace with natural fire can easily and quickly be installed with an automatic bio ethanol burner in complete freedom and safety. The design possibilities are endless with the new long electronic bioethanol inserts: fireplace and television, nook with embedded ethanol burner, shelf and XL or XXL ethanol burner… light up your dreams with the magic of fire!



  “I Have only one burnin’ desire, let me stand next to your fire”
Jimi Hendrix

AFIRE Design
The high-tech art of fire

Long Bio Ethanol Burner Inserts with remote control

%

Premium High Tech Bioethanol Burners

%

XL, XXL Size Inserts

%

Exclusive, Smart & Design

%

Constraints !

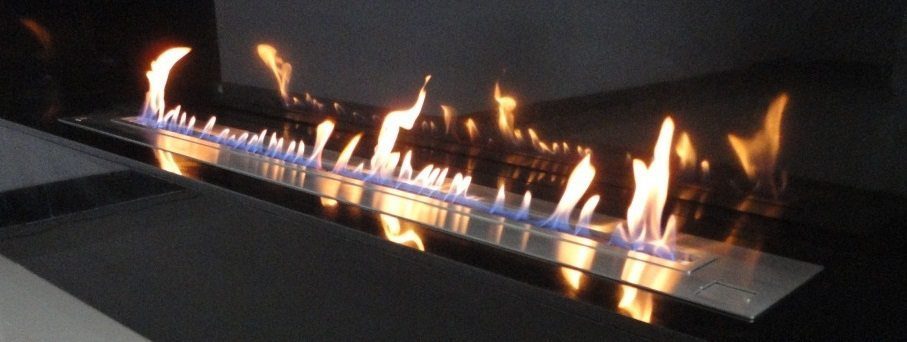

Bioethanol burner insert

BX smart bioethanol burner inserts range: technical characteristics

Remote control for ethanol fireplace & hearth

Controls

Remote control
On/off button
Dry contact for home automation applications and remote control via Smartphone or remote commands

Ignition - Power



Automatic and secured ignition through low-voltage electronic induction electrodes Feed pumps with high-tech membranes developed by the medical field

Security



Electronic sensors that automatically halt the unit in case of malfunction (CO², heat, levels, tank gauge, accelerometer, etc.)

Standards



All AFIRE devices comply with the following safety standards:
CE (Europe),
FCC (USA),
IC (Canada)



BX120 Monobloc XL bioethanol burner insert



– Dimensions: 120 / 23,8 / 21,3 cm – 47,24 / 9,39 / 8,39 inches
– Output: 7 500 W – 25 500 BTU
– Capacity of the tank: 12 L – 3,16 Gal
– Consumption: 1,2 liter/hour – 0,32 Gal/hour
– Weight: 34 kg – 75 Lbs.

Technical data sheet:

BX120 Intelligent ethanol burner insert data-sheet



BX120 bioethanol burner AFIRE

Bio ethanol burner BX120 dimension AFIRE

Bio ethanol burner BX120 housing AFIRE



BX150 Monobloc XL vent-free Bio ethanol burner



– Dimensions: 150 / 23,8 / 21,3 cm – 59,06 / 9,39 / 8,39 in
– Output: 10 000 W – 34 000 BTU
– Capacity of the tank: 15 L – 4 Gal
– Consumption: 1,65 liter/hour – 0,44 Gal/hour
– Weight: 38 kg – 84 Lbs.

Technical data sheet:

BX150 Intelligent ethanol burner insert data-sheet



Bioethanol burner A-FIRE

BX150 smart bio ethanol burner insert housing AFIRE

BX150 bio ethanol burner housing AFIRE



BX 180 Monobloc XXL smart bio ethanol burner insert



– Dimensions: 182 / 23,8 / 21,3 cm – 71,65 / 9,39 / 8,39 in

– Output: 12 400 W – 42 000 BTU

– Capacity of the tank: 18,5 L – 4,75 Gal

– Consumption: 2 liters/hour – 0,53 Gal/hour

– Weight: 42 kg – 92 Lbs.


Technical data sheet:

BX180 Intelligent ethanol burner insert data-sheet


Electronic ethanol burner Afire BX180

BX180 smart ethanol burner insert dimensions AFIRE

BX180 Smart ethanol burner insert housing dimensions

Bioethanol hearth AFIRE
Fireplace burner AFIRE
Bio burner A-FIRE
BX180 electronic ethanol burner AFIRE
