Fireplace hearth ethanol burner insert



Fireplace Hearths BL Range: The Heart Of Your Fireplace



BL “best seller” remote controlled ethanol burner inserts collection



Let your imagination run free! The remote-controlled fireplace hearths BL range enabling the design of most fire spaces. The natural elegance of flames needs to be concentrated on the crucial side of the insert: simple ergonomics, sleek design, and total control of the fire.

The fireplace hearth BL range is fire in its purest state, domesticated by AFIRE. Brushed stainless steel blocks of combustion line which can be embedded easily and quickly. Electronically secured fire that starts simply by remote control, via the button on the burner or via a dry contact for home automation, Wifi, Smartphones applications, remote button, etc. (socket on the edge of the burner).

%

Premium, Smart & Design

%

Bio & High Tech

%

Simple and Secured

%

Constraints !

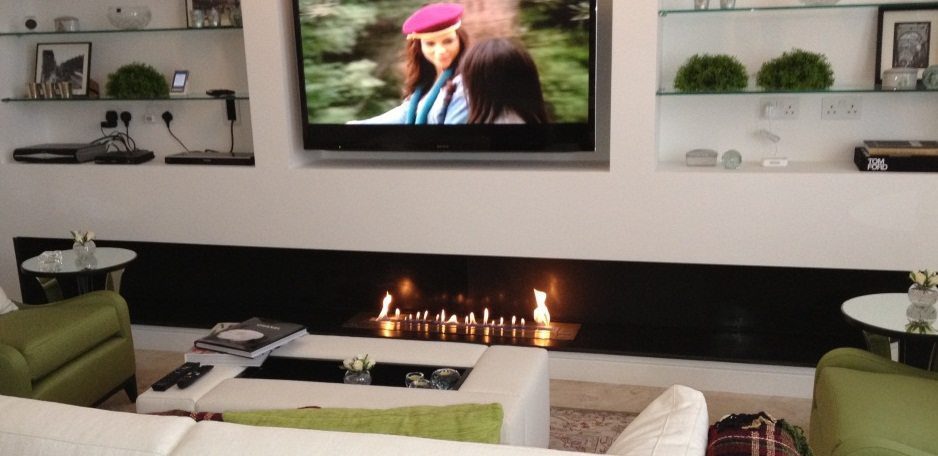

Fireplace hearth AFIRE BL

Fireplace hearths BL range: technical characteristics



Remote control for ethanol fireplace & hearth

Controls

Remote control
On/off button
Dry contact for home automation applications and remote control via Smartphone or remote commands

Ignition - Power



Automatic and secured ignition through low-voltage electronic induction electrodes Feed pumps with high-tech membranes developed by the medical field

Security



Electronic sensors that automatically halt the unit in case of malfunction (CO², heat, levels, tank gauge, accelerometer, etc.)

Standards



All AFIRE devices comply with the following safety standards:
CE (Europe),
FCC (USA),
IC (Canada)



1. BL40 “compact” ethanol burner with remote control

With its compact dimensions, the BL40 can be easily fitted everywhere. It is an urbanised fireplace hearth which permits optimal customisation for all sizes of furnishing. The best solution for spaces of average dimensions.

– Dimensions: 40,5 / 23,8 / 11,3 cm       (15,94 / 9,39 / 4,45 in)

– Output: 2 700 W (9 000 BTU)

– Capacity of the tank: 2,25 L (0,6 Gal)

– Consumption: 0,4  liter/hour (0,11 Gal/hour)

– Weight: 8,5 kg (18,74 Lbs.)

Technical data sheet:

BL40 Intelligent ethanol burner insert data-sheet



BL40 ethanol hearth afire

BL40 ethanol burner dimensions AFIRE

BL40 smart ethanol burner housing AFIRE



2. BL66 “large” ethanol hearths

With its wide dimensions, the central part of the BL66 burner allows the flames to develop freely and in a very natural manner. The intermediate solution for a dynamic fire which is suited to medium-sized rooms.

– Dimensions: 66,5 / 23,8 / 11,3 cm (26,18 / 9,39 / 4,45 in)

– Output: 3 750 W (13 000 BTU)

– Capacity of the tank: 2,8 L (0,75 Gal)

– Consumption: 0,55 liter/hour (0,15 Gal/hour)

– Weight: 14 kg (30,86 Lbs.)

Technical data sheet:

BL66 Smart ethanol burner insert data-sheet



BL66 bioethanol hearth A-FIRE

Bio ethanol burner BL66 dimensions AFIRE

Bio ethanol burner BL66 housing AFIRE



3. BL100 electronic bio ethanol hearths: “extra-large”

The beauty of long flames, in their purest state, which are reflected in the block of stainless steel. The BL100 offers the possibility of creating a 16/9 ethanol hearth in a trendy design. This exclusive bio fire insert is unquestionably the best-selling device of AFIRE fireplace hearths ranges.
Simply press the remote control button…

– Dimensions: 100 / 23,8 / 12,3 cm (39,37 / 9,39 / 4,84 in)
– Output: 6200 W (21 000 BTU)
– Capacity of the tank: 5 L (1,32 Gal)
– Consumption: 1 liter/hour (0,25 Gal/hour)
– Weight: 20 kg (44,09 Lbs.)

Technical data sheet:

BL100 Intelligent ethanol burner insert data-sheet



Fireplace hearth A-FIRE

Ethanol burner BL100 dimensions AFIRE

Ethanol burner insert BL100 housing AFIRE

BL100 ethanol fireplace hearth
BL40 ethanol burner AFIRE
Ethanol burner insert with remote control BL40
Bio ethanol burner BL66
Fireplace hearth ethanol BL100
BL100 Premium design ethanol burner AFIRE
